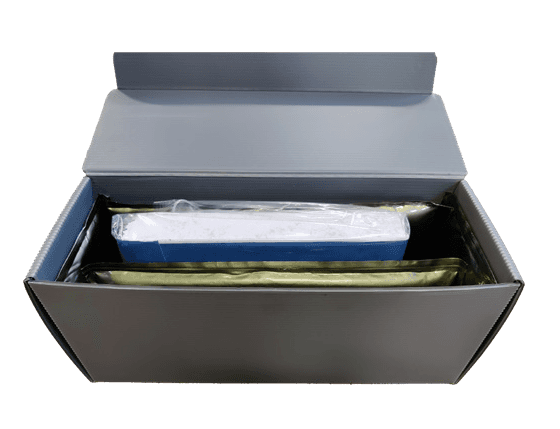

LiProPac 10A/AS
A solution designed for transportation and storage of UN 3480 Lithium ion batteries
For packing instructions: 903, 908, 909, 910 and 911.
Outer dimensions
640 x 260 x 360 mm
Inner dimensions
460 x 140 x 260 mm
Weight
24 kg
Loading capacity
16 kg
A steel plate
case solution
A steel plate case solution for severely damaged or defective lithium-ion batteries.
For packing instruction P911.
Equipped with PCM-shields that delays, reduce and also capable to
prevent the thermal runaway.
The CamPure 15 filter removes the HF-gas from the emission.
For cell phones, tablets and similar:
Each solution is issued with 5 PCM envelopes to be able to enclose
the battery appliances or cells.
For larger cells and batteries (i.g. e-bike):
The solution can be equipped with customized inner packages.
PCM Shields
ClimSel™ C48-X is a salt hydrate based Phase Change Material that works by either charging or discharging energy at different temperatures.
The PCM shields is a non-combustible material that absorb the heat release from a cell or battery, delaying a thermal runaway in the cell or battery. It also protects against further heat development in the package and has a certain extinguishing effect in the event of fire.
Filter media
CamPure 15 is a high quality chemical adsorbent based on a combination of activated alumina and activated carbon powders, co-formed with a proprietary impregnation system.
CamPure 15 filters the emission from the dangerouse HF-gas.
